Validating thermal capacity models for overhead power lines with European transmission system operator
Having established a national thermal capacity model for future dynamic rating of critical circuits, this customer requested Synaptec to retrofit passive sensors on HV phase conductors to validate the model. This is done by monitoring temperature, vibration, and line sag on a span with a passive sensor requiring no power supply, batteries, maintenance, or 4G telecoms infrastructure. Synaptec’s Synthesis® software solution provides live visualisation of these mechanical parameters to which current data can be added to provide live ampacity from any location with minimal equipment footprint.
Equipment installed: DES Interrogator, Synthesis® and Overhead Line Sensor | Communication protocol: IEC 61850-9-2 | Live since: 2022
Get in touch
Abdul Rahman Mustapha
Business Development
APAC enquiries
Tel: +6012 393 7953
Prasanta Das
Business Development
India and GCC enquiries
Tel: +91 9766355355
Related posts
The Distributed Mechanical Sensing (DMS) Interrogator
The Distributed Mechanical Sensing (DMS) Interrogator is designed for monitoring of large numbers of point temperature sensors with unprecedented efficiency. The DMS Interrogator allows up to 20 temperature sensors per channel to be multiplexed across up to 8 channels.
Passive Secondary Converter for Current – Three-Phase (PSC3-C) Gen2
The PSC-3-C is Synaptec’s passive, three-phase analogue current sensor for power network applications. It converts Current Transformer (CT) secondary currents into optical signals to be measured, synchronised and digitised over long distances without the need for...

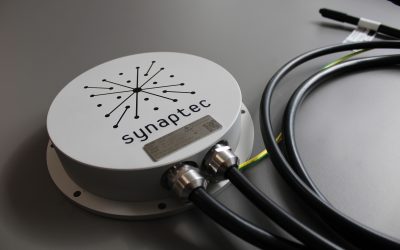

Passive Secondary Converter for Current – Single-Phase (PSC1-C) Gen2
